TFlowPanelDemo 项目分析

项目信息

• 项目名称: TFlowPanelDemo
• 下载链接: TFlowPanelDemo.rar
• 分析时间: 2026-03-05

文件结构

TFlowPanelDemo/
├── Extractor_Icon.ico
├── Project1.py
├── Project1.xml
├── Unit1.py
├── Unit1.pydfm
├── Unit1.sct
├── Unit1.sfm

主程序文件: Project1.py

from glcl import *
from Unit1 import *

def main():
    Application.Initialize()
    Application.Title = 'Project1'
    Application.MainFormOnTaskbar = True
    Application.Icon.LoadFromFile(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Extractor_Icon.ico"))
    MainForm = Form1(Application)
    MainForm.Show()
    FreeConsole()
    Application.Run()
    MainForm.Free()

if __name__ == '__main__':
    main()

单元文件: Unit1.py

import os
from glcl import *

class Form1(Form):

    def __init__(self, owner):
        self.FlowPanel1 = FlowPanel(self)
        self.ScrollBox1 = ScrollBox(self)
        self.LoadProps(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Unit1.pydfm"))

        # 循环添加10个Button
        for i in range(10):
            btn = Button(self)
            btn.Name = "Flobtn" + str(i)
            # 需要将控件的父控件设置为FlowPanel
            btn.Parent = self.FlowPanel1
            btn.Caption = "aaaa" + str(i)

设计文件: Unit1.sct

设计文件: Unit1.sfm

object Form1: TForm
  Left = 0
  Top = 0
  Caption = 'Form1'
  ClientHeight = 478
  ClientWidth = 300
  Color = clBtnFace
  Font.Charset = DEFAULT_CHARSET
  Font.Color = clWindowText
  Font.Height = -15
  Font.Name = 'Segoe UI'
  Font.Style = []
  TextHeight = 20
  object ScrollBox1: TScrollBox
    Left = 0
    Top = 0
    Width = 300
    Height = 478
    Align = alClient
    TabOrder = 0
    ExplicitLeft = 64
    ExplicitTop = 120
    ExplicitWidth = 185
    ExplicitHeight = 41
    object FlowPanel1: TFlowPanel
      Left = 0
      Top = 0
      Width = 296
      Height = 465
      Align = alTop
      AutoSize = True
      TabOrder = 0
    end
  end
end

其他文件

• Extractor_Icon.ico
• Project1.xml

详细分析

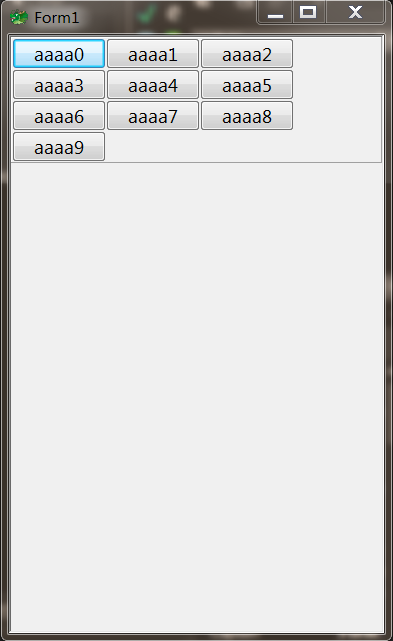

功能概述

GUI组件演示

使用的组件

• Form1 (TForm)
• ScrollBox1 (TScrollBox)
• FlowPanel1 (TFlowPanel)

技术特点

• 包含3个GUI组件
• 定义0个事件处理

窗体属性

• caption: Form1
• height: 478
• width: 300

代码分析

导入的模块: - import os - from glcl import *

定义的类: - Form1

定义的方法: - init

---
