TSplitterDemo 项目分析

项目信息

• 项目名称: TSplitterDemo
• 下载链接: TSplitterDemo.rar
• 分析时间: 2026-03-05

文件结构

TSplitterDemo/
├── Extractor_Icon.ico
├── Project1.py
├── Project1.xml
├── Unit1.py
├── Unit1.pydfm
├── Unit1.sct
├── Unit1.sfm

主程序文件: Project1.py

from glcl import *
from Unit1 import *

def main():
    Application.Initialize()
    Application.Title = 'Project1'
    Application.MainFormOnTaskbar = True
    Application.Icon.LoadFromFile(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Extractor_Icon.ico"))
    MainForm = Form1(Application)
    MainForm.Show()
    FreeConsole()
    Application.Run()
    MainForm.Free()

if __name__ == '__main__':
    main()

单元文件: Unit1.py

import os
from glcl import *

class Form1(Form):

    def __init__(self, owner):
        self.Button1 = Button(self)
        self.Splitter1 = Splitter(self)
        self.Memo1 = Memo(self)
        self.Panel1 = Panel(self)
        self.LoadProps(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Unit1.pydfm"))
        self.Button1.OnClick = self.Button1Click

    def Button1Click(self, Sender):
        self.Memo1.Lines.Add('splitter')

设计文件: Unit1.sct

def Button1Click(Sender):

设计文件: Unit1.sfm

object Form1: TForm
  Left = 0
  Top = 0
  Caption = 'Form1'
  ClientHeight = 240
  ClientWidth = 661
  Color = clBtnFace
  Font.Charset = DEFAULT_CHARSET
  Font.Color = clWindowText
  Font.Height = -15
  Font.Name = 'Segoe UI'
  Font.Style = []
  TextHeight = 20
  object Panel1: TPanel
    Left = 0
    Top = 55
    Width = 661
    Height = 185
    Align = alBottom
    TabOrder = 0
    ExplicitTop = 489
    object Splitter1: TSplitter
      Left = 1
      Top = 106
      Width = 659
      Height = 3
      Cursor = crVSplit
      Align = alTop
      ExplicitTop = 90
      ExplicitWidth = 94
    end
    object Memo1: TMemo
      Left = 1
      Top = 1
      Width = 659
      Height = 105
      Align = alTop
      Lines.Strings = (
        'Memo1')
      TabOrder = 0
    end
    object Button1: TButton
      Left = 1
      Top = 109
      Width = 659
      Height = 75
      Align = alClient
      Caption = 'Button1'
      TabOrder = 1
      OnClick = Button1Click
    end
  end
end

其他文件

• Extractor_Icon.ico
• Project1.xml

详细分析

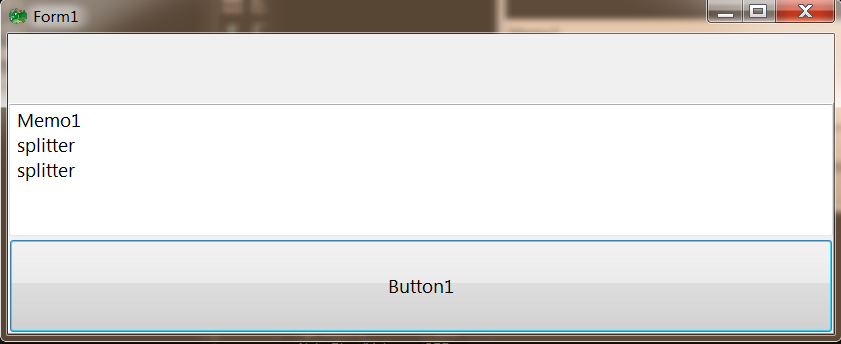

功能概述

GUI组件演示

使用的组件

• Form1 (TForm)
• Panel1 (TPanel)
• Splitter1 (TSplitter)
• Memo1 (TMemo)
• Button1 (TButton)

技术特点

• 包含5个GUI组件
• 定义1个事件处理

窗体属性

• caption: Button1
• height: 240
• width: 661

代码分析

导入的模块: - import os - from glcl import *

定义的类: - Form1

定义的方法: - init - Button1Click

事件绑定: - self.Button1.OnClick = self.Button1Click

---
