EduStringGridDemo 项目分析¶
项目信息¶
- 项目名称: EduStringGridDemo
- 下载链接: EduStringGridDemo.rar
- 分析时间: 2026-03-05
文件结构¶
EduStringGridDemo/
├── Extractor_Icon.ico
├── Project1.py
├── Project1.xml
├── Unit1.py
├── Unit1.pydfm
├── Unit1.sct
├── Unit1.sfm
主程序文件: Project1.py¶
from glcl import *
from Unit1 import *
def main():
Application.Initialize()
Application.Title = 'Project1'
Application.MainFormOnTaskbar = True
Application.Icon.LoadFromFile(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Extractor_Icon.ico"))
MainForm = Form1(Application)
MainForm.Show()
FreeConsole()
Application.Run()
MainForm.Free()
if __name__ == '__main__':
main()
单元文件: Unit1.py¶
# Powered By Python Studio, The best Python GUI IDE to download from glsite.com.
import os
from glcl import *
class Form1(Form):
"""
主窗体类，继承自Form基类
包含网格控件和各种操作按钮
"""
def __init__(self, owner):
"""
初始化窗体
"""
self.SuperGrid1 = EduStringGrid(self) # 字符串网格控件
self.Panel1 = Panel(self) # 面板容器
self.Button1 = Button(self) # 按钮1：清除合并单元格
self.Button2 = Button(self) # 按钮2：合并单元格
self.Button3 = Button(self) # 按钮3：填充测试数据
self.Button4 = Button(self) # 按钮4：自动调整列宽
self.Button6 = Button(self) # 按钮6：打印预览
self.Button7 = Button(self) # 按钮7：打印设置
self.Button8 = Button(self) # 按钮8：打印
self.Button12 = Button(self) # 按钮12：保存到文件
self.AColEdit = Edit(self) # 编辑框：A列索引输入
self.BColEdit = Edit(self) # 编辑框：B列索引输入
self.Button13 = Button(self) # 按钮13：移动列
self.Button14 = Button(self) # 按钮14：交换列
self.Button15 = Button(self) # 按钮15：删除行
self.Button16 = Button(self) # 按钮16：删除列
self.Button17 = Button(self) # 按钮17：交换行
self.Button18 = Button(self) # 按钮18：移动行
self.Button19 = Button(self) # 按钮19：插入行
self.Button20 = Button(self) # 按钮20：插入列
self.Button21 = Button(self) # 按钮21：清空网格
self.Button22 = Button(self) # 按钮22：设置查看列
self.Button23 = Button(self) # 按钮23：跳转到指定位置
self.Button25 = Button(self) # 按钮25：从文件加载
self.FGEdit = Edit(self) # 编辑框：文件格式输入
self.Label1 = Label(self) # 标签控件
self.OpenDialog1 = OpenDialog(self) # 打开文件对话框
self.SaveDialog1 = SaveDialog(self) # 保存文件对话框
self.Button26 = Button(self) # 按钮26：自动调整指定列宽
self.Button27 = Button(self) # 按钮27：填充大量测试数据
self.DeleteRowEdit = Edit(self) # 编辑框：删除/插入行索引
self.DeleteColEdit = Edit(self) # 编辑框：删除/插入列索引
self.GDCheckBox = CheckBox(self) # 复选框：是否包含标题
# 从文件加载窗体属性配置
self.LoadProps(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Unit1.pydfm"))
# 绑定按钮点击事件到对应的处理方法
self.Button27.OnClick = self.Button27Click # 绑定按钮27点击事件
self.Button23.OnClick = self.Button23Click # 绑定按钮23点击事件
self.Button22.OnClick = self.Button22Click # 绑定按钮22点击事件
self.Button21.OnClick = self.Button21Click # 绑定按钮21点击事件
self.Button20.OnClick = self.Button20Click # 绑定按钮20点击事件
self.Button16.OnClick = self.Button16Click # 绑定按钮16点击事件
self.Button19.OnClick = self.Button19Click # 绑定按钮19点击事件
self.Button15.OnClick = self.Button15Click # 绑定按钮15点击事件
self.Button18.OnClick = self.Button18Click # 绑定按钮18点击事件
self.Button13.OnClick = self.Button13Click # 绑定按钮13点击事件
self.Button17.OnClick = self.Button17Click # 绑定按钮17点击事件
self.Button14.OnClick = self.Button14Click # 绑定按钮14点击事件
self.Button25.OnClick = self.Button25Click # 绑定按钮25点击事件
self.Button12.OnClick = self.Button12Click # 绑定按钮12点击事件
self.Button8.OnClick = self.Button8Click # 绑定按钮8点击事件
self.Button7.OnClick = self.Button7Click # 绑定按钮7点击事件
self.Button6.OnClick = self.Button6Click # 绑定按钮6点击事件
self.Button4.OnClick = self.Button4Click # 绑定按钮4点击事件
self.Button26.OnClick = self.Button26Click # 绑定按钮26点击事件
self.Button1.OnClick = self.Button1Click # 绑定按钮1点击事件
self.Button2.OnClick = self.Button2Click # 绑定按钮2点击事件
self.Button3.OnClick = self.Button3Click # 绑定按钮3点击事件

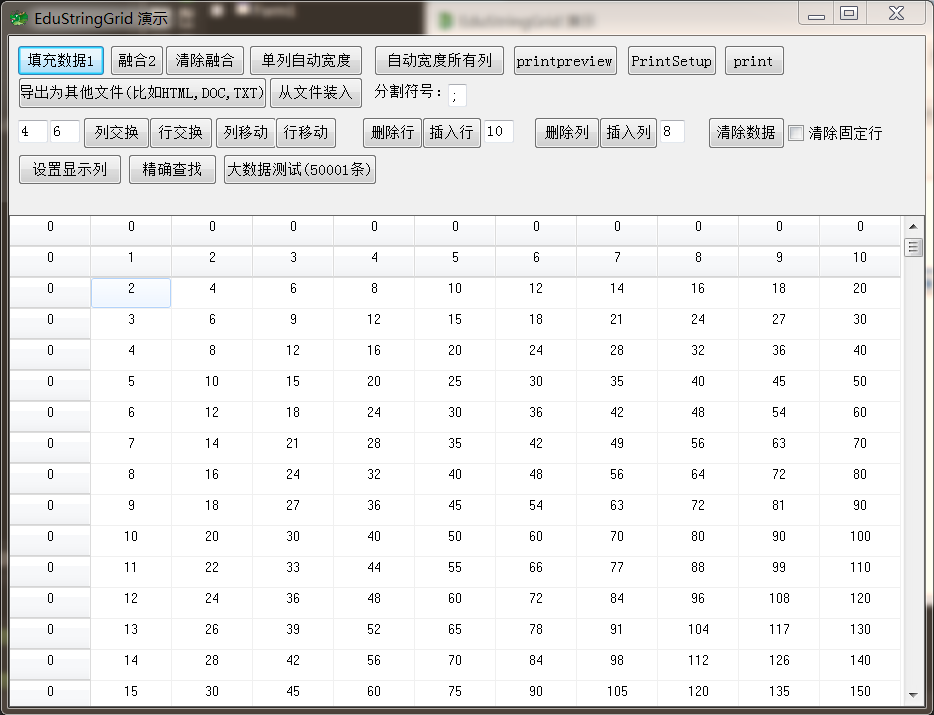

def Button3Click(self, Sender):
"""
按钮3点击事件：用乘法表数据填充网格
设置网格为1001行11列，每个单元格填充i*j的结果
"""
self.supergrid1.RowCount = 1001 # 设置行数为1001
self.supergrid1.ColCount = 11 # 设置列数为11
# 双重循环填充网格数据
for i in range(0, 1001): # 遍历所有行 (0-1000)
for j in range(0, 11): # 遍历所有列 (0-10)
self.supergrid1.SetCells(j, i, str(i*j)) # 设置单元格值为i*j
def Button2Click(self, Sender):
"""
按钮2点击事件：合并指定单元格
演示三种不同的单元格合并方式
"""
self.supergrid1.MergeCells(2,0,4,0,True) # 合并第2-4列第0行，True表示合并内容
self.supergrid1.MergeCells(2,1,4,1,False) # 合并第2-4列第1行，False表示不合并内容
self.supergrid1.MergeCells(6,0,8,0,False) # 合并第6-8列第0行
self.supergrid1.Refresh() # 刷新网格显示
def Button1Click(self, Sender):
"""
按钮1点击事件：清除所有合并的单元格
"""
self.supergrid1.MergeClear() # 清除所有单元格合并状态
def Button26Click(self, Sender):
"""
按钮26点击事件：自动调整指定列的宽度
"""
self.supergrid1.AutoSizeCol(0, 10) # 自动调整第0列宽度，边距为10
def Button4Click(self, Sender):
"""
按钮4点击事件：自动调整所有列宽
确保最后一列至少有64像素宽度
"""
self.supergrid1.AutoSizeColumns(True, 10) # 自动调整所有列宽，边距为10
# 检查最后一列宽度，如果小于64则设置为64
if self.supergrid1.ColWidths[self.supergrid1.ColCount-1] < 64:
self.supergrid1.ColWidths[self.supergrid1.ColCount-1] = 64
def Button6Click(self, Sender):
"""
按钮6点击事件：显示打印预览
"""
self.supergrid1.Preview(True) # 打开打印预览对话框
def Button7Click(self, Sender):
"""
按钮7点击事件：显示打印设置
"""
self.supergrid1.PrintSetup(True) # 打开打印设置对话框
def Button8Click(self, Sender):
"""
按钮8点击事件：执行打印
"""
self.supergrid1.Print(True) # 执行打印操作
def Button12Click(self, Sender):
"""
按钮12点击事件：保存网格数据到文件
使用保存文件对话框选择保存路径
"""
if self.SaveDialog1.Execute(): # 显示保存文件对话框
# 保存网格数据到指定文件，使用指定的文件格式
self.supergrid1.SaveToFile(self.SaveDialog1.FileName, self.FGEdit.Text[0])
def Button25Click(self, Sender):
"""
按钮25点击事件：从文件加载网格数据
使用打开文件对话框选择文件
"""
if self.OpenDialog1.Execute(): # 显示打开文件对话框
# 从指定文件加载网格数据，使用指定的文件格式
self.supergrid1.LoadFromFile(self.OpenDialog1.FileName, self.FGEdit.Text[0])
def Button14Click(self, Sender):
"""
按钮14点击事件：交换两列的位置
从编辑框获取列索引并验证有效性
"""
ACol = -1
BCol = -1
try:
# 从编辑框获取列索引
if self.AColEdit.Text.strip() != '':
ACol = int(self.AColEdit.Text)
if self.BColEdit.Text.strip() != '':
BCol = int(self.BColEdit.Text)
# 验证索引有效性并执行交换
if (ACol >= 0) and (ACol <= self.supergrid1.ColCount-1) and\
(BCol >= 0) and (BCol <= self.supergrid1.ColCount-1):
self.supergrid1.SwapColumns(ACol,BCol) # 交换两列
except:
pass # 忽略所有异常
def Button17Click(self, Sender):
"""
按钮17点击事件：交换两行的位置
从编辑框获取行索引并验证有效性
"""
ARow = -1
BRow = -1
try:
# 从编辑框获取行索引
if self.AColEdit.Text.strip() != '':
ARow = int(self.AColEdit.Text)
if self.BColEdit.Text.strip() != '':
BRow = int(self.BColEdit.Text)
# 验证索引有效性并执行交换
if (ARow >= 0) and (ARow <= self.supergrid1.RowCount-1) and\
(BRow >= 0) and (BRow <= self.supergrid1.RowCount-1):
self.supergrid1.SwapRows(ARow,BRow) # 交换两行
except:
pass # 忽略所有异常
def Button13Click(self, Sender):
"""
按钮13点击事件：移动列到新位置
从编辑框获取列索引并验证有效性
"""
ACol = -1
BCol = -1
try:
# 从编辑框获取列索引
if self.AColEdit.Text.strip() != '':
ACol = int(self.AColEdit.Text)
if self.BColEdit.Text.strip() != '':
BCol = int(self.BColEdit.Text)
# 验证索引有效性并执行移动
if (ACol >= 0) and (ACol <= self.supergrid1.ColCount-1) and\
(BCol >= 0) and (BCol <= self.supergrid1.ColCount-1):
self.supergrid1.MoveColumn(ACol,BCol) # 移动列
except:
pass # 忽略所有异常
def Button18Click(self, Sender):
"""
按钮18点击事件：移动行到新位置
从编辑框获取行索引并验证有效性
"""
ARow = -1
BRow = -1
try:
# 从编辑框获取行索引
if self.AColEdit.Text.strip() != '':
ARow = int(self.AColEdit.Text)
if self.BColEdit.Text.strip() != '':
BRow = int(self.BColEdit.Text)
# 验证索引有效性并执行移动
if (ARow >= 0) and (ARow <= self.supergrid1.RowCount-1) and\
(BRow >= 0) and (BRow <= self.supergrid1.RowCount-1):
self.supergrid1.MoveRow(ARow,BRow) # 移动行
except:
pass # 忽略所有异常
def Button15Click(self, Sender):
"""
按钮15点击事件：删除指定行
从编辑框获取行索引并验证有效性
"""
ARow = -1
try:
# 从编辑框获取行索引
if self.DeleteRowEdit.Text.strip() != '':
ARow = int(self.DeleteRowEdit.Text)
# 验证索引有效性并执行删除
if (ARow >= 0) and (ARow <= self.supergrid1.RowCount-1):
self.supergrid1.DeleteRow(ARow) # 删除行
except:
pass # 忽略所有异常
def Button19Click(self, Sender):
"""
按钮19点击事件：在指定位置插入新行
从编辑框获取行索引并验证有效性
"""
ARow = -1
try:
# 从编辑框获取行索引
if self.DeleteRowEdit.Text.strip() != '':
ARow = int(self.DeleteRowEdit.Text)
# 验证索引有效性并执行插入
if (ARow >= 0) and (ARow <= self.supergrid1.RowCount-1):
self.supergrid1.InsertRow(ARow) # 插入行
except:
pass # 忽略所有异常
def Button16Click(self, Sender):
"""
按钮16点击事件：删除指定列
从编辑框获取列索引并验证有效性
"""
ACol = -1
try:
# 从编辑框获取列索引
if self.DeleteColEdit.Text.strip() != '':
ACol = int(self.DeleteColEdit.Text)
# 验证索引有效性并执行删除
if (ACol >= 0) and (ACol <= self.supergrid1.ColCount-1):
self.supergrid1.DeleteColumn(ACol) # 删除列
except:
pass # 忽略所有异常
def Button20Click(self, Sender):
"""
按钮20点击事件：在指定位置插入新列
从编辑框获取列索引并验证有效性
"""
ACol = -1
try:
# 从编辑框获取列索引
if self.DeleteColEdit.Text.strip() != '':
ACol = int(self.DeleteColEdit.Text)
# 验证索引有效性并执行插入
if (ACol >= 0) and (ACol <= self.supergrid1.ColCount-1):
self.supergrid1.InsertColumn(ACol) # 插入列
except:
pass # 忽略所有异常
def Button21Click(self, Sender):
"""
按钮21点击事件：清空网格内容
根据复选框决定是否包含标题
"""
self.supergrid1.Clear(self.GDCheckBox.Checked) # 清空网格
def Button22Click(self, Sender):
"""
按钮22点击事件：设置查看列
"""
self.supergrid1.SetViewCol() # 设置查看列
def Button23Click(self, Sender):
"""
按钮23点击事件：跳转到指定单元格
"""
self.supergrid1.DoGoto() # 执行跳转操作
self.supergrid1.SetFocus() # 设置焦点到网格
def Button27Click(self, Sender):
"""
按钮27点击事件：填充大量测试数据（50001行11列）
用于性能测试或大数据量演示
"""
self.supergrid1.RowCount = 50001 # 设置行数为50001
self.supergrid1.colcount = 11 # 设置列数为11
# 双重循环填充大量数据
for i in range(0, 50001): # 遍历所有行 (0-50000)
for j in range(0, 11): # 遍历所有列 (0-10)
self.supergrid1.SetCells(j, i, str(i*j)) # 设置单元格值为i*j
设计文件: Unit1.sct¶
def Button3Click(Sender):
def Button2Click(Sender):
def Button1Click(Sender):
def Button24Click(Sender):
def Button26Click(Sender):
def Button4Click(Sender):
def Button6Click(Sender):
def Button7Click(Sender):
def Button8Click(Sender):
def Button12Click(Sender):
def Button25Click(Sender):
def Button14Click(Sender):
def Button17Click(Sender):
def Button13Click(Sender):
def Button18Click(Sender):
def Button15Click(Sender):
def Button19Click(Sender):
def Button16Click(Sender):
def Button20Click(Sender):
def Button21Click(Sender):
def Button22Click(Sender):
def Button23Click(Sender):
def Button27Click(Sender):
设计文件: Unit1.sfm¶
object Form1: TForm
Left = 0
Top = 0
Caption = 'EduStringGrid '#28436#31034
ClientHeight = 562
ClientWidth = 872
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'MS Sans Serif'
Font.Style = []
WindowState = wsMaximized
TextHeight = 13
object SuperGrid1: TEduStringGrid
Left = 0
Top = 143
Width = 872
Height = 419
Align = alClient
Ctl3D = False
FixedRows = 2
Options = [goFixedVertLine, goFixedHorzLine, goVertLine, goHorzLine, goRangeSelect, goDrawFocusSelected]
ParentCtl3D = False
TabOrder = 0
BevelStyle = cbNone
BlockName = 'test'
AlignmentVert = taMiddle
AlignmentHorz = taCenter
ClickSorting = True
ClickDown = False
ProportionalScrollBars = False
ExtendedKeys = True
MultiLines = True
end
object Panel1: TPanel
Left = 0
Top = 0
Width = 872
Height = 143
Align = alTop
BevelOuter = bvNone
Font.Charset = GB2312_CHARSET
Font.Color = clWindowText
Font.Height = -12
Font.Name = #23435#20307
Font.Style = []
ParentFont = False
TabOrder = 1
object Label1: TLabel
Left = 292
Top = 38
Width = 60
Height = 13
AutoSize = False
Caption = #20998#21106#31526#21495#65306
end
object Button1: TButton
Left = 125
Top = 7
Width = 64
Height = 25
Caption = #28165#38500#34701#21512
TabOrder = 0
OnClick = Button1Click
end
object Button2: TButton
Left = 81
Top = 7
Width = 43
Height = 25
Caption = #34701#21512'2'
TabOrder = 1
OnClick = Button2Click
end
object Button3: TButton
Left = 6
Top = 7
Width = 71
Height = 25
Caption = #22635#20805#25968#25454'1'
TabOrder = 2
OnClick = Button3Click
end
object Button4: TButton
Left = 292
Top = 7
Width = 105
Height = 25
Caption = #33258#21160#23485#24230#25152#26377#21015
TabOrder = 3
OnClick = Button4Click
end
object Button6: TButton
Left = 403
Top = 7
Width = 84
Height = 25
Caption = 'printpreview'
TabOrder = 4
OnClick = Button6Click
end
object Button7: TButton
Left = 494
Top = 7
Width = 72
Height = 25
Caption = 'PrintSetup'
TabOrder = 5
OnClick = Button7Click
end
object Button8: TButton
Left = 572
Top = 7
Width = 49
Height = 25
Caption = 'print'
TabOrder = 6
OnClick = Button8Click
end
object Button12: TButton
Left = 7
Top = 33
Width = 199
Height = 25
Caption = #23548#20986#20026#20854#20182#25991#20214'('#27604#22914'HTML,DOC,TXT)'
TabOrder = 7
OnClick = Button12Click
end
object AColEdit: TEdit
Left = 7
Top = 67
Width = 24
Height = 20
TabOrder = 8
Text = '4'
end
object BColEdit: TEdit
Left = 33
Top = 67
Width = 24
Height = 20
TabOrder = 9
Text = '6'
end
object Button13: TButton
Left = 165
Top = 65
Width = 49
Height = 25
Caption = #21015#31227#21160
TabOrder = 10
OnClick = Button13Click
end
object Button14: TButton
Left = 59
Top = 65
Width = 54
Height = 25
Caption = #21015#20132#25442
TabOrder = 11
OnClick = Button14Click
end
object Button15: TButton
Left = 282
Top = 65
Width = 49
Height = 25
Caption = #21024#38500#34892
TabOrder = 12
OnClick = Button15Click
end
object Button16: TButton
Left = 420
Top = 65
Width = 53
Height = 25
Caption = #21024#38500#21015
TabOrder = 13
OnClick = Button16Click
end
object DeleteRowEdit: TEdit
Left = 380
Top = 67
Width = 24
Height = 20
TabOrder = 14
Text = '10'
end
object DeleteColEdit: TEdit
Left = 521
Top = 67
Width = 20
Height = 20
TabOrder = 15
Text = '8'
end
object Button17: TButton
Left = 112
Top = 65
Width = 51
Height = 25
Caption = #34892#20132#25442
TabOrder = 16
OnClick = Button17Click
end
object Button18: TButton
Left = 213
Top = 65
Width = 49
Height = 25
Caption = #34892#31227#21160
TabOrder = 17
OnClick = Button18Click
end
object Button19: TButton
Left = 330
Top = 65
Width = 48
Height = 25
Caption = #25554#20837#34892
TabOrder = 18
OnClick = Button19Click
end
object Button20: TButton
Left = 472
Top = 65
Width = 47
Height = 25
Caption = #25554#20837#21015
TabOrder = 19
OnClick = Button20Click
end
object Button21: TButton
Left = 559
Top = 65
Width = 62
Height = 25
Caption = #28165#38500#25968#25454
TabOrder = 20
OnClick = Button21Click
end
object GDCheckBox: TCheckBox
Left = 623
Top = 69
Width = 97
Height = 17
Caption = #28165#38500#22266#23450#34892
TabOrder = 21
end
object Button22: TButton
Left = 7
Top = 94
Width = 83
Height = 25
Caption = #35774#32622#26174#31034#21015
TabOrder = 22
OnClick = Button22Click
end
object Button23: TButton
Left = 95
Top = 94
Width = 71
Height = 25
Caption = #31934#30830#26597#25214
TabOrder = 23
OnClick = Button23Click
end
object Button25: TButton
Left = 208
Top = 33
Width = 75
Height = 25
Caption = #20174#25991#20214#35013#20837
TabOrder = 24
OnClick = Button25Click
end
object FGEdit: TEdit
Left = 351
Top = 38
Width = 15
Height = 20
TabOrder = 25
Text = ';'
end
object Button26: TButton
Left = 192
Top = 7
Width = 91
Height = 25
Caption = #21333#21015#33258#21160#23485#24230
TabOrder = 26
OnClick = Button26Click
end
object Button27: TButton
Left = 171
Top = 94
Width = 123
Height = 25
Caption = #22823#25968#25454#27979#35797'(50001'#26465')'
TabOrder = 27
OnClick = Button27Click
end
end
object OpenDialog1: TOpenDialog
Left = 448
Top = 232
end
object SaveDialog1: TSaveDialog
Left = 480
Top = 232
end
end
其他文件¶
- Extractor_Icon.ico
- Project1.xml
详细分析¶
功能概述¶
网格组件演示
使用的组件¶
- Form1 (TForm)
- SuperGrid1 (TEduStringGrid)
- Panel1 (TPanel)
- Label1 (TLabel)
- Button1 (TButton)
- Button2 (TButton)
- Button3 (TButton)
- Button4 (TButton)
- Button6 (TButton)
- Button7 (TButton)
- Button8 (TButton)
- Button12 (TButton)
- AColEdit (TEdit)
- BColEdit (TEdit)
- Button13 (TButton)
- Button14 (TButton)
- Button15 (TButton)
- Button16 (TButton)
- DeleteRowEdit (TEdit)
- DeleteColEdit (TEdit)
- Button17 (TButton)
- Button18 (TButton)
- Button19 (TButton)
- Button20 (TButton)
- Button21 (TButton)
- GDCheckBox (TCheckBox)
- Button22 (TButton)
- Button23 (TButton)
- Button25 (TButton)
- FGEdit (TEdit)
- Button26 (TButton)
- Button27 (TButton)
- OpenDialog1 (TOpenDialog)
- SaveDialog1 (TSaveDialog)
技术特点¶
- 包含34个GUI组件
- 定义22个事件处理
窗体属性¶
- caption: #22823#25968#25454#27979#35797'(50001'#26465')
- height: 562
- width: 872
代码分析¶
导入的模块: - import os - from glcl import *
定义的类: - Form1
定义的方法: - init - Button3Click - Button2Click - Button1Click - Button26Click - Button4Click - Button6Click - Button7Click - Button8Click - Button12Click - Button25Click - Button14Click - Button17Click - Button13Click - Button18Click - Button15Click - Button19Click - Button16Click - Button20Click - Button21Click - Button22Click - Button23Click - Button27Click
事件绑定: - self.Button27.OnClick = self.Button27Click # 绑定按钮27点击事件 - self.Button23.OnClick = self.Button23Click # 绑定按钮23点击事件 - self.Button22.OnClick = self.Button22Click # 绑定按钮22点击事件 - self.Button21.OnClick = self.Button21Click # 绑定按钮21点击事件 - self.Button20.OnClick = self.Button20Click # 绑定按钮20点击事件 - self.Button16.OnClick = self.Button16Click # 绑定按钮16点击事件 - self.Button19.OnClick = self.Button19Click # 绑定按钮19点击事件 - self.Button15.OnClick = self.Button15Click # 绑定按钮15点击事件 - self.Button18.OnClick = self.Button18Click # 绑定按钮18点击事件 - self.Button13.OnClick = self.Button13Click # 绑定按钮13点击事件 - self.Button17.OnClick = self.Button17Click # 绑定按钮17点击事件 - self.Button14.OnClick = self.Button14Click # 绑定按钮14点击事件 - self.Button25.OnClick = self.Button25Click # 绑定按钮25点击事件 - self.Button12.OnClick = self.Button12Click # 绑定按钮12点击事件 - self.Button8.OnClick = self.Button8Click # 绑定按钮8点击事件 - self.Button7.OnClick = self.Button7Click # 绑定按钮7点击事件 - self.Button6.OnClick = self.Button6Click # 绑定按钮6点击事件 - self.Button4.OnClick = self.Button4Click # 绑定按钮4点击事件 - self.Button26.OnClick = self.Button26Click # 绑定按钮26点击事件 - self.Button1.OnClick = self.Button1Click # 绑定按钮1点击事件 - self.Button2.OnClick = self.Button2Click # 绑定按钮2点击事件 - self.Button3.OnClick = self.Button3Click # 绑定按钮3点击事件
