NiceChartDemo 项目分析¶
项目信息¶
- 项目名称: NiceChartDemo
- 下载链接: NiceChartDemo.rar
- 分析时间: 2026-03-05
文件结构¶
NiceChartDemo/
├── Extractor_Icon.ico
├── Project1.py
├── Project1.xml
├── Unit1.py
├── Unit1.pydfm
├── Unit1.sct
├── Unit1.sfm
主程序文件: Project1.py¶
from glcl import *
from Unit1 import *
def main():
Application.Initialize()
Application.Title = 'Project1'
Application.MainFormOnTaskbar = True
Application.Icon.LoadFromFile(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Extractor_Icon.ico"))
MainForm = Form1(Application)
MainForm.Show()
FreeConsole()
Application.Run()
MainForm.Free()
if __name__ == '__main__':
main()
单元文件: Unit1.py¶
import os
from glcl import *
class Form1(Form):
def __init__(self, owner):
self.Button3 = Button(self)
self.CheckBox1 = CheckBox(self)
self.CheckBox2 = CheckBox(self)
self.CheckBox3 = CheckBox(self)
self.CheckBox4 = CheckBox(self)
self.Label1 = Label(self)
self.Button1 = Button(self)
self.Button2 = Button(self)
# 从pydfm文件加载窗体属性（窗体设计器生成的）
self.LoadProps(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Unit1.pydfm"))
self.Button3.OnClick = self.Button3Click
# 绑定控件事件处理方法
self.Button2.OnClick = self.Button2Click
self.OnClose = self.FormClose
self.Button1.OnClick = self.Button1Click
self.CheckBox4.OnClick = self.CheckBox4Click
self.CheckBox3.OnClick = self.CheckBox3Click
self.CheckBox2.OnClick = self.CheckBox2Click
self.CheckBox1.OnClick = self.CheckBox1Click
# 动态创建NiceChart，也可以通过窗体设计器放置NiceChart控件并设置属性和事件
self.Chart = NiceChart(self)
self.Chart.Parent = self
self.Chart.Left = 8 # 设置左边距
self.Chart.Top = 40 # 设置上边距
self.Chart.Width = self.ClientWidth - 16 # 设置宽度（根据窗体宽度调整）
self.Chart.Height = self.ClientHeight - 70 # 设置高度（根据窗体高度调整）
self.Chart.Anchors = ['akLeft', 'akTop', 'akRight', 'akBottom'] # 设置锚点，使图表随窗体大小调整
self.Chart.Title = 'Look at me!\rI''m a NiceChart!' # 设置图表标题
self.Chart.AxisXOnePerValue = True # X轴每个值显示一个刻度
self.Chart.ShowXGrid = False # 不显示X轴网格线
self.Chart.GridColor = clSilver # 设置网格线颜色
self.Chart.TickLength = 6 # 设置刻度线长度
self.Chart.AxisYScale = 1000 # 设置Y轴比例
self.Chart.OnMouseMove = self.ChartMouseMove # 绑定鼠标移动事件
# 开始批量更新图表（提高性能）
self.Chart.BeginUpdate()
# 添加第一个数据系列（柱状图）
Series = self.Chart.AddSeries(skBar) # skLine=>线条, skSmooth=>平滑曲线, skBar=>柱状
Series.Caption = 'Revenue' # 设置系列名称
# 添加数据点（X值，Y值，标签）
Series.AddXY( 0, 0, '')
Series.AddXY(2000, 4904620, '')
Series.AddXY(2001, 15086420, '')
Series.AddXY(2002, 14696560, '')
Series.AddXY(2003, 14263160, '')
Series.AddXY(2004, 13711080, '')
Series.AddXY(2005, 13018880, '')
Series.AddXY(2006, 11901080, '')
Series.AddXY(2007, 10592340, '')
Series.AddXY(2008, 9750620, '')
Series.AddXY(2009, 9007960, '')
Series.AddXY(2010, 7980940, '')
Series.AddXY(2011, 6164060, '')
Series.AddXY(2012, 4182760, '')
Series.AddXY(2013, 3026420, '')
Series.AddXY(2014, 1907200, '')
# 添加第二个数据系列（柱状图）
Series = self.Chart.AddSeries(skBar)
Series.Caption = 'Cash Flow'
Series.AddXY( 0, -9435276, '')
Series.AddXY(2000, -12884809.79, '')
Series.AddXY(2001, 11849628.6, '')
Series.AddXY(2002, 8676685.24, '')
Series.AddXY(2003, 3856984.44, '')
Series.AddXY(2004, 3811447.44, '')
Series.AddXY(2005, 686684.1, '')
Series.AddXY(2006, 377060.42, '')
Series.AddXY(2007, 831488.06, '')
Series.AddXY(2008, 1517731.99, '')
Series.AddXY(2009, 1431460.27, '')
Series.AddXY(2010, 1158463.54, '')
Series.AddXY(2011, 737914.59, '')
Series.AddXY(2012, 386103.52, '')
Series.AddXY(2013, 249675.86, '')
Series.AddXY(2014, 119973, '')
# 添加第三个数据系列（平滑曲线）
Series = self.Chart.AddSeries(skSmooth)
Series.Caption = 'Cum. Cash Flow'
Series.AddXY( 0, -9435276, '')
Series.AddXY(2000, -22320085.79, '')
Series.AddXY(2001, -10470457.19, '')
Series.AddXY(2002, -1793771.95, '')
Series.AddXY(2003, 2063212.49, '')
Series.AddXY(2004, 5874659.93, '')
Series.AddXY(2005, 6561344.03, '')
Series.AddXY(2006, 6938404.46, '')
Series.AddXY(2007, 7769892.52, '')
Series.AddXY(2008, 9287624.51, '')
Series.AddXY(2009, 10719084.78, '')
Series.AddXY(2010, 11877548.32, '')
Series.AddXY(2011, 12615462.91, '')
Series.AddXY(2012, 13001566.43, '')
Series.AddXY(2013, 13251242.29, '')
Series.AddXY(2014, 13371215.29, '')
Series.LineWidth = 3 # 设置线宽
self.Chart.EndUpdate()
self.Label1.Caption = '123'
# 图表鼠标移动事件处理
def ChartMouseMove(self, Sender, Shift, X, Y):
# 将鼠标坐标转换为图表坐标
strXY = self.Chart.ClientToChart(X, Y) # 返回值是图表坐标，以竖线分割
if strXY != '':
# 解析坐标值并格式化显示
ax, ay = strXY.split('|') # 分割坐标值
self.Label1.Caption = 'Mouse position: {:.2f}'.format(float(ax)) + '; ' + '{:.2f}'.format(float(ay) / 1000)
else:
# 鼠标在图表外时显示提示
self.Label1.Caption = 'Out of Chart'
# 复选框1点击事件（控制坐标轴线宽）
def CheckBox1Click(self, Sender):
if self.Checkbox1.Checked:
self.Chart.AxisLineWidth = 3
else:
self.Chart.AxisLineWidth = 1
# 复选框2点击事件（控制X轴网格显示）
def CheckBox2Click(self, Sender):
self.Chart.ShowXGrid = self.Checkbox2.Checked
# 复选框3点击事件（控制Y轴网格显示）
def CheckBox3Click(self, Sender):
self.Chart.ShowYGrid = self.Checkbox3.Checked
# 复选框4点击事件（控制X轴线显示）
def CheckBox4Click(self, Sender):
self.Chart.ShowXAxisLine = self.Checkbox4.Checked
# 按钮1点击事件（切换单色/彩色模式）
def Button1Click(self, Sender):
self.Chart.Monochrome = not self.Chart.Monochrome
if self.Chart.Monochrome:
self.Button1.Caption = 'Color'
else:
self.Button1.Caption = 'Monochrome'
# 窗体关闭事件（释放图表资源）
def FormClose(self, Sender, Action):
self.Chart.Free()
# 按钮2点击事件（保存图表为EMF文件）
def Button2Click(self, Sender):
fn = 'test.emf'
m = self.Chart.CreateMetafile()
try:
m.Enhanced = True
m.SaveToFile(fn)
finally:
m.Free()
ShowMessage('Saved to "' + fn + '".')
def Button3Click(self, Sender):
fb = 'test.bmp'
b = self.Chart.CreateBitmap(self.Chart.Width, self.Chart.Height)
try:
b.SaveToFile(fb)
finally:
b.Free()
ShowMessage('Saved to "' + fb + '".')
设计文件: Unit1.sct¶
def CheckBox1Click(Sender):
def CheckBox2Click(Sender):
def CheckBox3Click(Sender):
def CheckBox4Click(Sender):
def FormDestroy(Sender):
def Button1Click(Sender):
def FormClose(Sender, Action):
def Button2Click(Sender):
def Button3Click(Sender):
设计文件: Unit1.sfm¶
object Form1: TForm
Left = 0
Top = 0
Caption = 'NiceChart Demo'
ClientHeight = 565
ClientWidth = 854
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -12
Font.Name = 'Segoe UI'
Font.Style = []
Position = poScreenCenter
OnClose = FormClose
DesignSize = (
854
565)
TextHeight = 15
object Label1: TLabel
Left = 8
Top = 545
Width = 34
Height = 15
Anchors = [akLeft, akBottom]
Caption = 'Label1'
end
object Button1: TButton
Left = 8
Top = 1
Width = 105
Height = 25
Caption = 'Monochrome'
TabOrder = 0
OnClick = Button1Click
end
object Button2: TButton
Left = 120
Top = 1
Width = 105
Height = 25
Caption = 'Save to WMF'
TabOrder = 1
OnClick = Button2Click
end
object CheckBox1: TCheckBox
Left = 344
Top = 7
Width = 96
Height = 19
Caption = 'Thick axis lines'
Checked = True
State = cbChecked
TabOrder = 2
OnClick = CheckBox1Click
end
object CheckBox2: TCheckBox
Left = 454
Top = 7
Width = 80
Height = 19
Caption = 'Show x grid'
TabOrder = 3
OnClick = CheckBox2Click
end
object CheckBox3: TCheckBox
Left = 547
Top = 7
Width = 80
Height = 19
Caption = 'Show y grid'
Checked = True
State = cbChecked
TabOrder = 4
OnClick = CheckBox3Click
end
object CheckBox4: TCheckBox
Left = 638
Top = 7
Width = 101
Height = 19
Caption = 'Show x axis line'
TabOrder = 5
OnClick = CheckBox4Click
end
object Button3: TButton
Left = 232
Top = 1
Width = 105
Height = 25
Caption = 'Save to BMP'
TabOrder = 6
OnClick = Button3Click
end
end
其他文件¶
- Extractor_Icon.ico
- Project1.xml
详细分析¶
功能概述¶

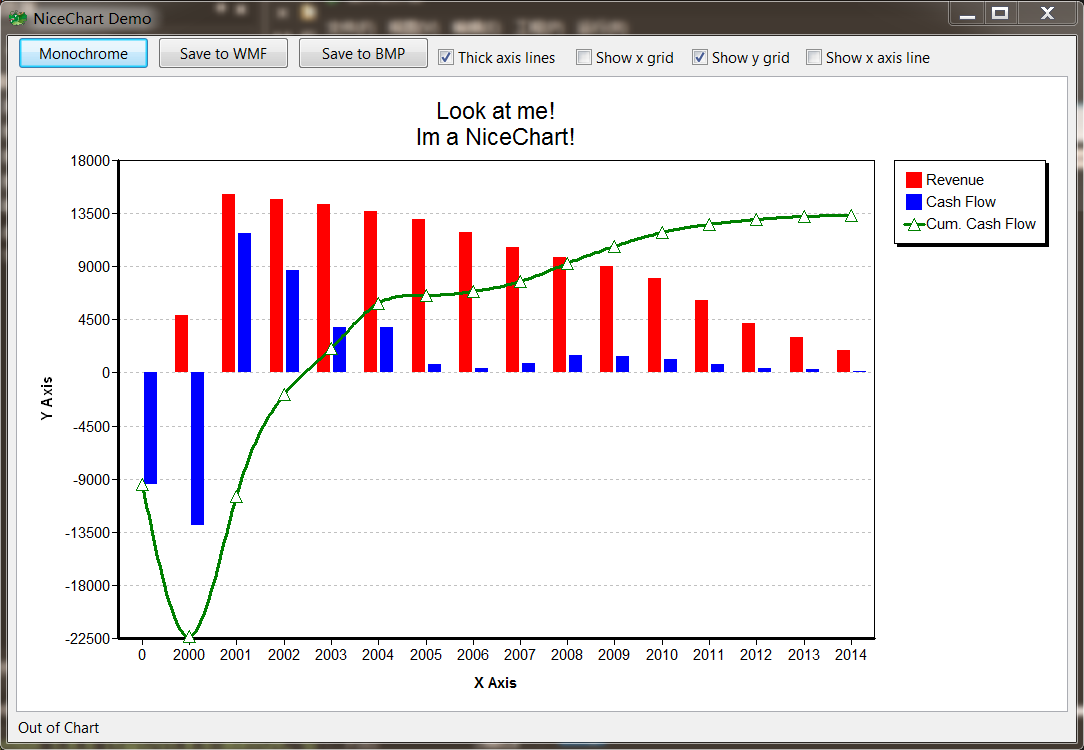

图表组件演示
使用的组件¶
- Form1 (TForm)
- Label1 (TLabel)
- Button1 (TButton)
- Button2 (TButton)
- CheckBox1 (TCheckBox)
- CheckBox2 (TCheckBox)
- CheckBox3 (TCheckBox)
- CheckBox4 (TCheckBox)
- Button3 (TButton)
技术特点¶
- 包含9个GUI组件
- 定义7个事件处理
窗体属性¶
- caption: Save to BMP
- height: 565
- width: 854
代码分析¶
导入的模块: - import os - from glcl import *
定义的类: - Form1
定义的方法: - init - ChartMouseMove - CheckBox1Click - CheckBox2Click - CheckBox3Click - CheckBox4Click - Button1Click - FormClose - Button2Click - Button3Click
事件绑定: - self.Button3.OnClick = self.Button3Click - self.Button2.OnClick = self.Button2Click - self.Button1.OnClick = self.Button1Click - self.CheckBox4.OnClick = self.CheckBox4Click - self.CheckBox3.OnClick = self.CheckBox3Click - self.CheckBox2.OnClick = self.CheckBox2Click - self.CheckBox1.OnClick = self.CheckBox1Click
