NiceGridBasicDemo 项目分析¶
项目信息¶
- 项目名称: NiceGridBasicDemo
- 下载链接: NiceGridBasicDemo.rar
- 分析时间: 2026-03-05

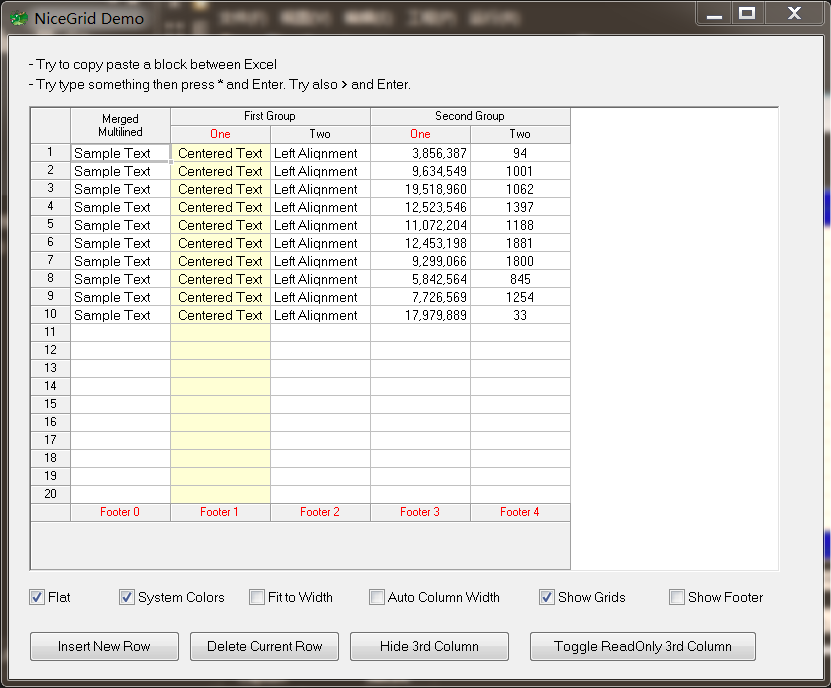

运行截图¶
文件结构¶
NiceGridBasicDemo/
├── Extractor_Icon.ico
├── Project1.py
├── Project1.xml
├── main.py
├── main.pydfm
├── main.sct
├── main.sfm
主程序文件: Project1.py¶
from glcl import *
from main import *
def main():
Application.Initialize()
Application.Title = 'Project1'
Application.MainFormOnTaskbar = True
Application.Icon.LoadFromFile(os.path.join(os.path.dirname(os.path.abspath(__file__)), "Extractor_Icon.ico"))
mForm = MainForm(Application)
mForm.Show()
FreeConsole()
Application.Run()
mForm.Free()
if __name__ == '__main__':
main()
单元文件: main.py¶
import os
from glcl import *
import random
class MainForm(Form):
def __init__(self, owner):
self.NiceGrid1 = NiceGrid(self)
self.CheckBox1 = CheckBox(self)
self.CheckBox2 = CheckBox(self)
self.CheckBox3 = CheckBox(self)
self.CheckBox4 = CheckBox(self)
self.CheckBox5 = CheckBox(self)
self.Label1 = Label(self)
self.Label2 = Label(self)
self.Button1 = Button(self)
self.Button2 = Button(self)
self.Button3 = Button(self)
self.Button4 = Button(self)
self.CheckBox6 = CheckBox(self)
# 从pydfm文件加载窗体属性（窗体设计器生成的）
self.LoadProps(os.path.join(os.path.dirname(os.path.abspath(__file__)), "main.pydfm"))
# 绑定控件事件处理方法
self.Button4.OnClick = self.Button4Click
self.Button1.OnClick = self.Button1Click
self.Button3.OnClick = self.Button3Click
self.Button2.OnClick = self.Button2Click
self.CheckBox6.OnClick = self.CheckBox6Click
self.CheckBox4.OnClick = self.CheckBox4Click
self.CheckBox5.OnClick = self.CheckBox5Click
self.CheckBox3.OnClick = self.CheckBox3Click
self.CheckBox2.OnClick = self.CheckBox2Click
self.CheckBox1.OnClick = self.CheckBox1Click
self.NiceGrid1.OnDrawHeader = self.NiceGrid1DrawHeader # 表头绘制事件
# 开始批量更新表格（提高性能）
self.NiceGrid1.BeginUpdate()
# 初始化表格数据（10行示例数据）
for x in range(0, 10):
self.NiceGrid1[0, x] = 'Sample Text' # 第1列：示例文本
self.NiceGrid1[1, x] = 'Centered Text' # 第2列：居中文本
self.NiceGrid1[2, x] = 'Left Alignment' # 第3列：左对齐文本
self.NiceGrid1[3, x] = '{:,}'.format(random.randint(0, 19999999)) # 第4列：格式化随机数
self.NiceGrid1[4, x] = str(random.randint(0, 1999)) # 第5列：随机数
# 结束批量更新
self.NiceGrid1.EndUpdate()
# 初始化复选框2状态
self.CheckBox2Click(None)
def NiceGrid1DrawHeader(self, Sender, ACanvas, Rc, Str, Handled):
if (Str == 'One'):
ACanvas.Font.Color = clRed
# 复选框1点击事件（控制表格平面样式）
def CheckBox1Click(self, Sender):
self.NiceGrid1.Flat = self.CheckBox1.Checked
# 复选框2点击事件（控制表格标题样式）
def CheckBox2Click(self, Sender):
if self.CheckBox2.Checked:
#self.NiceGrid1.GridColor = clBtnShadow
self.NiceGrid1.HeaderColor = clBtnFace
self.NiceGrid1.HeaderDarkColor = clBtnShadow
self.NiceGrid1.HeaderLightColor = clBtnHighlight
self.NiceGrid1.HeaderFont.Color = clBlack
self.NiceGrid1.GutterFont.Color = clBlack
else:
#self.NiceGrid1.GridColor = clGray
self.NiceGrid1.HeaderColor = 0x00DF0000 # 深红色
self.NiceGrid1.HeaderDarkColor = clBlack # 黑色
self.NiceGrid1.HeaderLightColor = 0x00FF8000 # 橙色
self.NiceGrid1.HeaderFont.Color = clWhite # 白色
self.NiceGrid1.GutterFont.Color = clWhite # 白色
# 复选框3点击事件（控制表格自动适应宽度）
def CheckBox3Click(self, Sender):
self.NiceGrid1.FitToWidth = self.CheckBox3.Checked
# 复选框5点击事件（控制网格线显示）
def CheckBox5Click(self, Sender):
self.NiceGrid1.ShowGrid = self.CheckBox5.Checked
# 复选框4点击事件（控制自动列宽）
def CheckBox4Click(self, Sender):
self.NiceGrid1.AutoColWidth = self.CheckBox4.Checked
# 复选框6点击事件（控制页脚显示）
def CheckBox6Click(self, Sender):
self.NiceGrid1.ShowFooter = not self.NiceGrid1.ShowFooter
# 按钮2点击事件（在当前行插入新行）
def Button2Click(self, Sender):
self.NiceGrid1.InsertRow(self.NiceGrid1.Row)
# 按钮3点击事件（删除当前行）
def Button3Click(self, Sender):
self.NiceGrid1.DeleteRow(self.NiceGrid1.Row)
# 按钮1点击事件（切换第3列可见性）
def Button1Click(self, Sender):
self.NiceGrid1.Columns[2].Visible = not self.NiceGrid1.Columns[2].Visible
# 按钮4点击事件（切换第3列只读状态）
def Button4Click(self, Sender):
self.NiceGrid1.Columns[2].ReadOnly = not self.NiceGrid1.Columns[2].ReadOnly
设计文件: main.sct¶
def NiceGrid1DrawHeader(Sender, ACanvas, Rc, Str, Handled):
def NiceGrid1InsertRow(Sender, ARow):
def CheckBox1Click(Sender):
def CheckBox2Click(Sender):
def CheckBox3Click(Sender):
def CheckBox5Click(Sender):
def CheckBox4Click(Sender):
def CheckBox6Click(Sender):
def Button2Click(Sender):
def Button3Click(Sender):
def Button1Click(Sender):
def Button4Click(Sender):
设计文件: main.sfm¶
object MainForm: TForm
Left = 0
Top = 0
Caption = 'NiceGrid Demo'
ClientHeight = 514
ClientWidth = 651
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'MS Sans Serif'
Font.Style = []
Position = poDesktopCenter
DesignSize = (
651
514)
TextHeight = 13
object Label1: TLabel
Left = 16
Top = 16
Width = 199
Height = 13
Caption = '- Try to copy paste a block between Excel'
Color = clBtnFace
ParentColor = False
end
object Label2: TLabel
Left = 16
Top = 32
Width = 307
Height = 13
Caption =
'- Try type something then press * and Enter. Try also > and Ente' +
'r.'
Color = clBtnFace
ParentColor = False
end
object NiceGrid1: TNiceGrid
Left = 16
Top = 56
Width = 601
Height = 373
Cursor = 101
ColCount = 5
RowCount = 20
AutoAddRow = True
DefColWidth = 100
GridColor = clSilver
HeaderLine = 2
HeaderColor = 14614528
HeaderLightColor = 16744448
HeaderDarkColor = clBlack
HeaderFont.Charset = DEFAULT_CHARSET
HeaderFont.Color = clWhite
HeaderFont.Height = -11
HeaderFont.Name = 'MS Sans Serif'
HeaderFont.Style = []
FooterFont.Charset = DEFAULT_CHARSET
FooterFont.Color = clRed
FooterFont.Height = -11
FooterFont.Name = 'MS Sans Serif'
FooterFont.Style = []
SelectionColor = 13816575
Columns = <
item
Title = 'Merged;Multilined|Merged;Multilined'
Footer = 'Footer 0'
Width = 100
CanResize = False
end
item
Title = 'First Group|One'
Footer = 'Footer 1'
Width = 100
Color = 14024703
HorzAlign = haCenter
Strings.Strings = (
'Satu'
'Dua'
'Tiga')
end
item
Title = 'First Group|Two'
Footer = 'Footer 2'
Width = 100
end
item
Title = 'Second Group|One'
Footer = 'Footer 3'
Width = 100
Color = clWhite
HorzAlign = haRight
end
item
Title = 'Second Group|Two'
Footer = 'Footer 4'
Width = 100
HorzAlign = haCenter
end>
GutterKind = gkNumber
GutterWidth = 40
GutterFont.Charset = DEFAULT_CHARSET
GutterFont.Color = clWhite
GutterFont.Height = -11
GutterFont.Name = 'MS Sans Serif'
GutterFont.Style = []
ShowFooter = True
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'MS Sans Serif'
Font.Style = []
Anchors = [akLeft, akTop, akRight, akBottom]
TabOrder = 0
end
object CheckBox1: TCheckBox
Left = 16
Top = 439
Width = 37
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'Flat'
Checked = True
State = cbChecked
TabOrder = 1
OnClick = CheckBox1Click
end
object CheckBox2: TCheckBox
Left = 88
Top = 439
Width = 93
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'System Colors'
Checked = True
State = cbChecked
TabOrder = 2
OnClick = CheckBox2Click
end
object CheckBox3: TCheckBox
Left = 192
Top = 439
Width = 80
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'Fit to Width'
TabOrder = 3
OnClick = CheckBox3Click
end
object CheckBox4: TCheckBox
Left = 288
Top = 439
Width = 125
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'Auto Column Width'
TabOrder = 4
OnClick = CheckBox4Click
end
object CheckBox5: TCheckBox
Left = 424
Top = 439
Width = 77
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'Show Grids'
Checked = True
State = cbChecked
TabOrder = 5
OnClick = CheckBox5Click
end
object Button1: TButton
Left = 272
Top = 476
Width = 129
Height = 25
Anchors = [akLeft, akBottom]
Caption = '&Hide 3rd Column'
TabOrder = 8
OnClick = Button1Click
end
object Button2: TButton
Left = 16
Top = 476
Width = 121
Height = 25
Anchors = [akLeft, akBottom]
Caption = '&Insert New Row'
TabOrder = 6
OnClick = Button2Click
end
object Button3: TButton
Left = 144
Top = 476
Width = 121
Height = 25
Anchors = [akLeft, akBottom]
Caption = '&Delete Current Row'
TabOrder = 7
OnClick = Button3Click
end
object Button4: TButton
Left = 416
Top = 476
Width = 182
Height = 25
Anchors = [akLeft, akBottom]
Caption = 'Toggle ReadOnly 3rd Column'
TabOrder = 9
OnClick = Button4Click
end
object CheckBox6: TCheckBox
Left = 528
Top = 439
Width = 84
Height = 19
Anchors = [akLeft, akBottom]
Caption = 'Show Footer'
TabOrder = 10
OnClick = CheckBox6Click
end
end
其他文件¶
- Extractor_Icon.ico
- main.py
- Project1.xml
详细分析¶
功能概述¶
网格组件演示
使用的组件¶
（未检测到具体组件）
技术特点¶
（未检测到特殊技术特点）
